Scans

Network scanning with nmap.

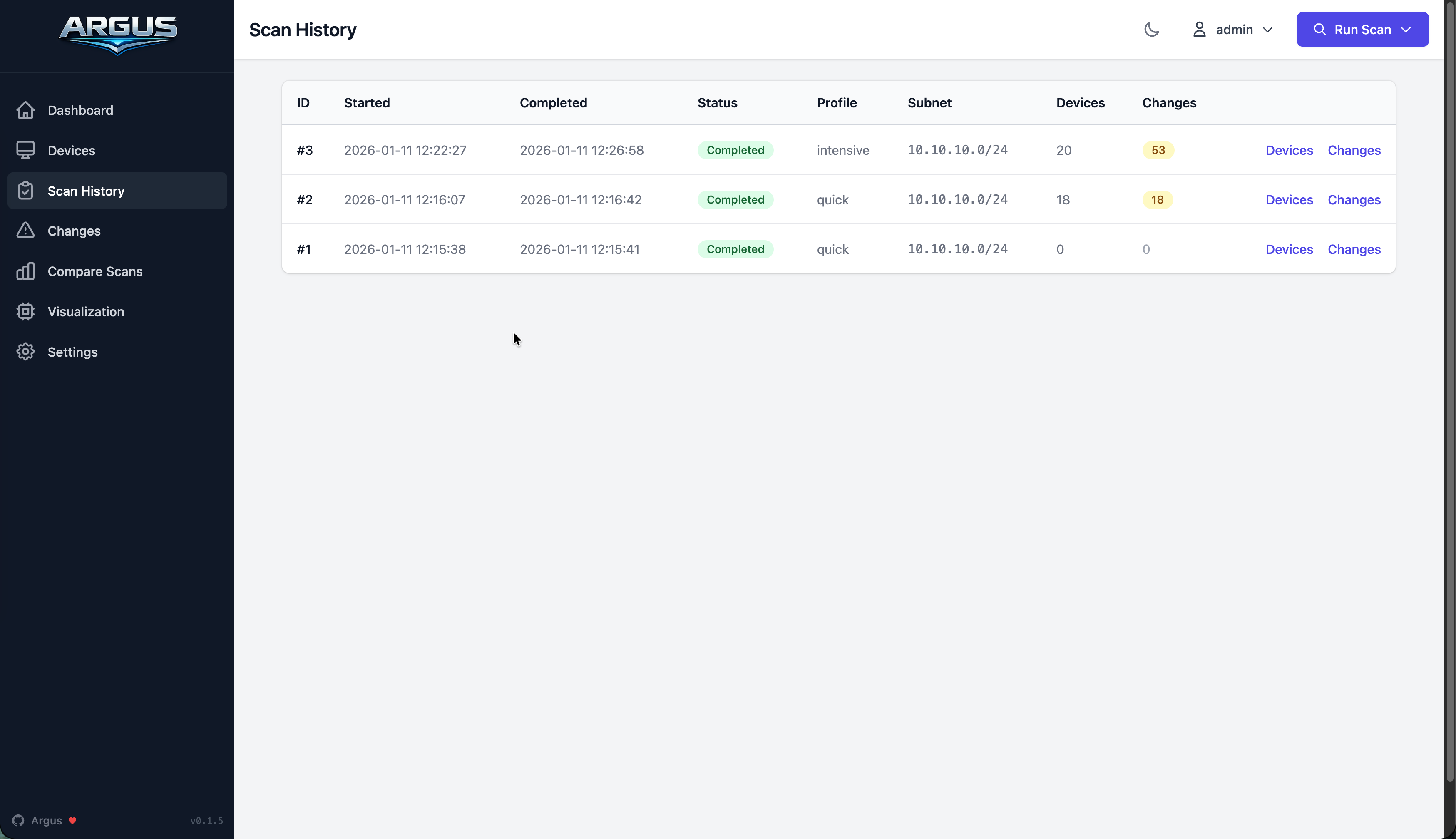

Scan History

How Scanning Works

flowchart LR
    A[Trigger Scan] --> B[nmap Execution]
    B --> C{Profile}
    C -->|Quick| D[Ping Sweep]
    C -->|Normal| E[Port Scan + Services]
    C -->|Intensive| F[Full Analysis + Scripts]
    D --> G[Process Results]
    E --> G
    F --> G
    G --> H[Store in Database]
    H --> I[Detect Changes]
    I --> J[Update Dashboard]

Scan Profiles

Profile nmap Command Use Case Duration
Quick nmap -sn -T4 Device discovery ~30 seconds
Normal nmap -sV -T4 -p 1-1000 Security audits 3-5 minutes
Intensive nmap -A -T4 Deep analysis 15-30 minutes

Profile Selection Guide

  • Quick: Use for frequent checks (hourly/daily) - just confirms devices are online
  • Normal: Use for security monitoring (daily/weekly) - detects open ports and services
  • Intensive: Use sparingly (weekly/monthly) - full OS detection and vulnerability scripts

Running Scans

  1. Click Run Scan in the navigation bar
  2. Select scan profile
  3. (Optional) Override subnet
  4. Monitor progress in real-time

Real-time Progress

The UI shows live scan progress including current host and discovered devices.

# Quick scan
python scan_cli.py scan --profile quick

# Normal scan with change detection
python scan_cli.py scan --profile normal --detect-changes

# Custom subnet
python scan_cli.py scan --subnet 10.0.0.0/24 --profile intensive

Press Ctrl+C to cancel a running scan gracefully.

# Trigger scan
curl -X POST "http://localhost:8080/api/scan/trigger?profile=quick"

# Custom subnet
curl -X POST "http://localhost:8080/api/scan/trigger?profile=normal&subnet=10.0.0.0/24"

# Check status
curl http://localhost:8080/api/scan/status

Scan History

View past scans with:

Column Description
Timestamp When scan completed
Status Completed, Running, Failed
Profile Quick, Normal, Intensive
Subnet Network range scanned
Devices Number of hosts found

Click any scan to view its device snapshot at that point in time.

Compare Scans

Select two scans to see differences:

Change Type Description
Devices Added New hosts appeared
Devices Removed Hosts disappeared
Ports Opened New services detected
Ports Closed Services stopped
Service Changed Version/product updates

Baseline Comparison

Compare your latest scan to a known-good baseline to quickly identify unexpected changes.

Change Detection

Enable change detection to track network modifications over time.

How to Enable

Add the --detect-changes flag:

python scan_cli.py scan --profile normal --detect-changes

Toggle Detect Changes when starting a scan.

Changes are always detected for scheduled scans.

Change Types

Type Trigger
device_added New MAC address seen
device_removed MAC address not responding
port_opened New port detected open
port_closed Previously open port now closed
service_changed Service name/version changed

Scheduling Scans

Automate regular network scanning.

# Quick scan every 6 hours
0 */6 * * * cd /opt/argus && python scan_cli.py scan --profile quick --detect-changes

# Normal scan nightly at 2 AM
0 2 * * * cd /opt/argus && python scan_cli.py scan --profile normal --detect-changes

# Intensive scan weekly (Sunday 3 AM)
0 3 * * 0 cd /opt/argus && python scan_cli.py scan --profile intensive --detect-changes
docker-compose.yml
environment:
  - SCAN_SCHEDULE=0 2 * * *

Settings Scheduled Scans Add Schedule

Cron Expression Reference

Expression Schedule
0 2 * * * Daily at 2 AM
0 */6 * * * Every 6 hours
0 2 * * 0 Sunday at 2 AM
*/30 * * * * Every 30 minutes
0 2 * * 1-5 Weekdays at 2 AM

Scan Frequency

  • Quick: Safe to run frequently (hourly or more)
  • Normal: Recommended daily or every few hours
  • Intensive: Weekly or less - generates significant traffic
Cron Syntax Explained
┌───────────── minute (0 - 59)
│ ┌───────────── hour (0 - 23)
│ │ ┌───────────── day of month (1 - 31)
│ │ │ ┌───────────── month (1 - 12)
│ │ │ │ ┌───────────── day of week (0 - 6, Sunday = 0)
│ │ │ │ │
* * * * *
